How to calibrate and measure voltage with the help of Fluke 726 multifunction calibrator
This voltage calibrator has the ability to calibrate various electrical and physical parameters such as current voltage and frequency along with temperature and pressure, which is called a multi-purpose or multi-function calibrator in this study. Meters, voltmeters and خواهد will be checked with the help of Fluke 726 calibrator
Cianco Engineering Technical Group, as the official representative of Fluke USA, for the first time in Iran, publishes training packages for working with measuring equipment and precision instruments of FLUKE brand in Persian language in PDF files. Complete Persian user guide for training devices and videos. Buy the products of this company at a reasonable and cheap price along with a Persian educational file. Contact us.
Voltage calibrator measurement 726

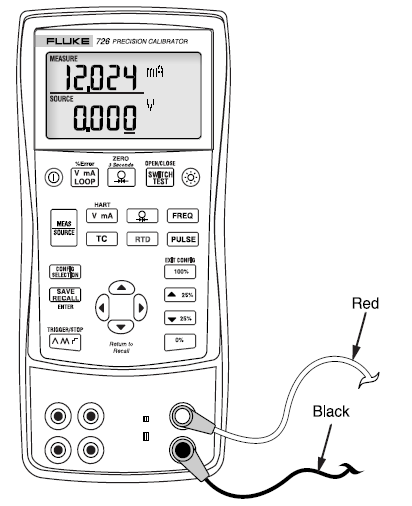

To measure the output voltage and display the value of this parameter at the top of the screen, press the key to select the electrical parameter and select the voltage mode, then connect the test interfaces to the device as shown.

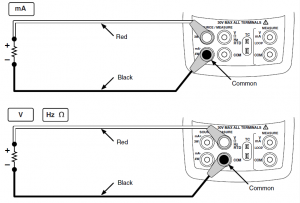

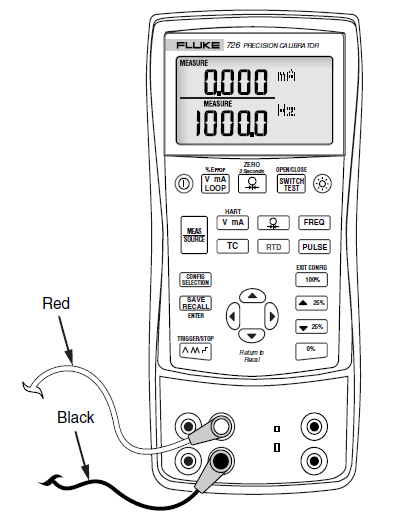

To measure the electrical voltage by the secondary terminals of the device and display the measured values at the bottom of the device screen, first connect the test interfaces to the device according to the figure, then if necessary, change the device mode from source mode to measurement. Give. Press the button to select the electrical parameters in order to measure the voltage.
Source and source mode for voltage in fluke 726
Resistance voltage and frequency values in this calibrator are displayed at the bottom of the screen

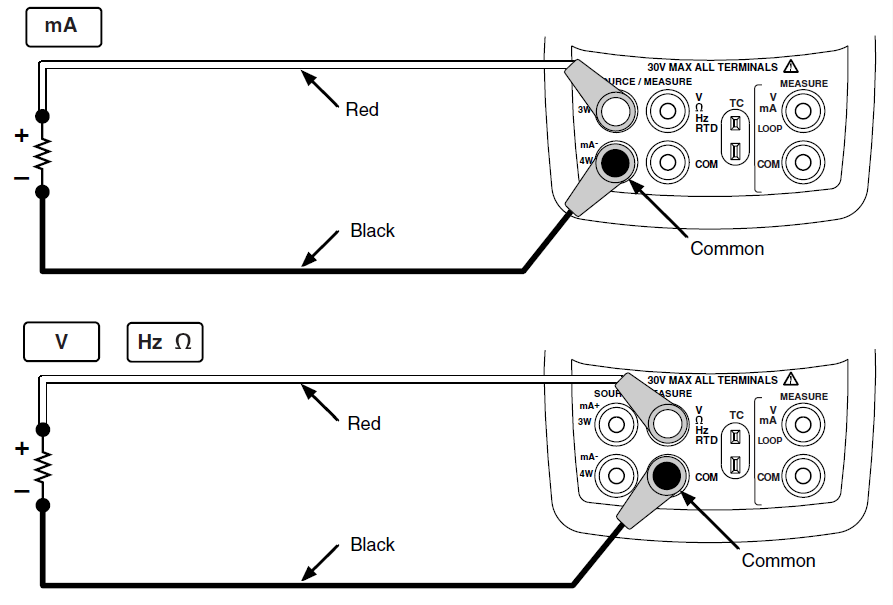

To select and determine the source for each of the electrical parameters mentioned, first connect the test interfaces to the device as shown below. Select the source mode if necessary, then press the DC voltage mode parameter selection key or press the corresponding frequency button. Or select a resistor. Select the desired value for each parameter by pressing the arrow keys.
